  4. 7/8" Twin distributor, Contacts: 5, unshielded, solder, IP68, VDE
Part no.: 09 2475 100 05

7/8" Twin distributor, Contacts: 5, unshielded, solder, IP68, VDE

7/8", series 870, Automation Technology - Voltage and Power Supply

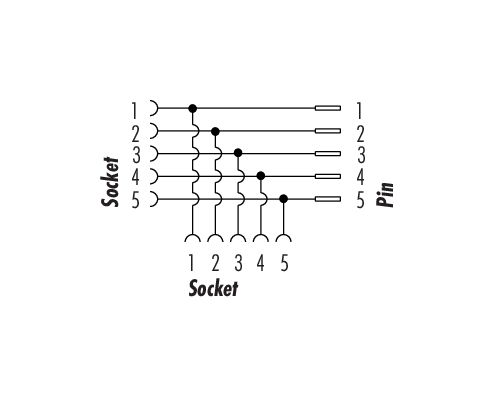

Available numbers of contacts
Compare product
General features
Part no. 09 2475 100 05
Connector design Twin distributor
Version T-Distributors
Connector locking system screw
Termination solder
Degree of protection IP68
Temperature range from/to -30 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 72.80
Customs tariff number 85369010
Country of Origin DE
Rated voltage 300 V
Rated impulse voltage 4000 V
Rated current 8.0 A
Pollution degree 3
Overvoltage category II
Insulating material group I
EMC compliance unshielded
Housing material Macromelt
Contact body material PUR
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 1893898a-5a91-4a2e-bd81-75b616eb5786
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  4. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
