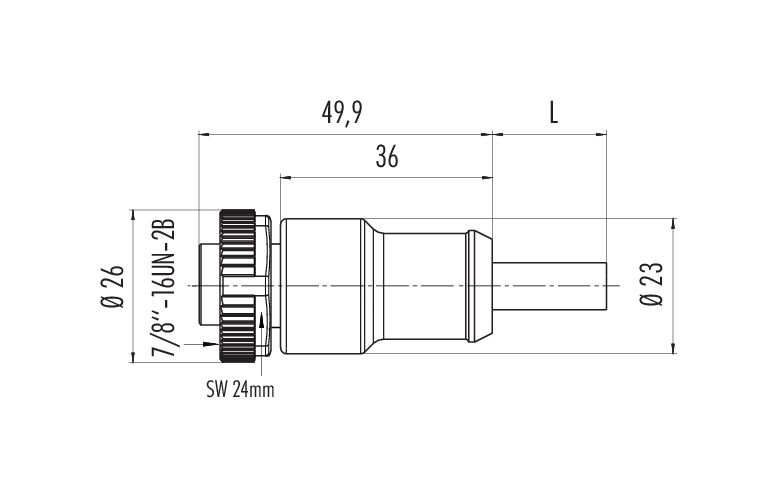

  4. 7/8" Female cable connector, Contacts: 5, unshielded, moulded on the cable, IP68, UL, PUR, black, 5 x 1.50 mm², 5 m
Part no.: 77 1430 0000 50005-0500

7/8" Female cable connector, Contacts: 5, unshielded, moulded on the cable, IP68, UL, PUR, black, 5 x 1.50 mm², 5 m

7/8", series 870, Automation Technology - Voltage and Power Supply

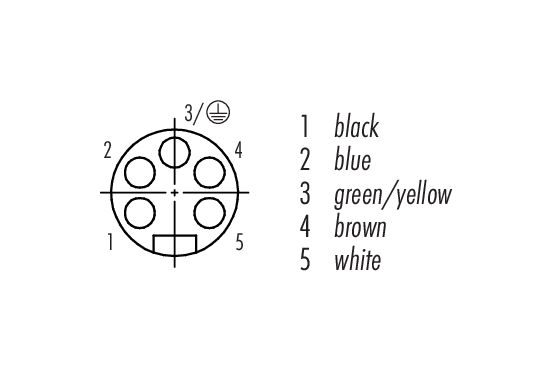

Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
General features
Part no. 77 1430 0000 50005-0500
Connector design Female cable connector
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector socket straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP68
Cross-sectional area 1.50 mm² / AWG 16
Temperature range from/to -25 °C / 80 °C
Mechanical operation > 100 Mating cycles
Weight (g) 421.00
Customs tariff number 85444290
Rated voltage 300 V (600 V UL)
Rated impulse voltage 2500 V
Rated current 9.0 A
Pollution degree 3
Overvoltage category II
Insulating material group I
EMC compliance unshielded
Housing material PUR
Contact body material PUR
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number b845d758-541f-47ea-947a-60aaace14618
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60529:1991;EN 60204-1:2018)
Cable data
Structure of the cable
Cable diameter 8.7 mm
Cross section 5 x 1.50 mm²
Sheath material PUR
Single-lead insulation TPM
Single-lead structure 82 x 0.15 mm
Cable color black
Mechanical properties
Bending radius, fixed cable ≥ 7.5 x Ø
Bending cycles 5 million
Permitted acceleration 5 m/s²
Travel distance, horizontal 20 m
Travel speed ≤ 300 m/min
Thermal properties
Temperature range cable in move from/to -20 °C / 80 °C
Temperature range cable fixed from/to -50 °C / 80 °C
Other features
Halogen free yes
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  5. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
