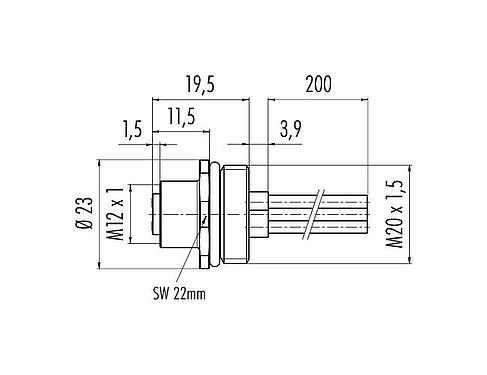

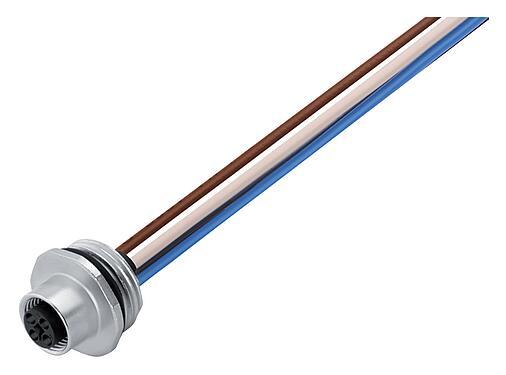

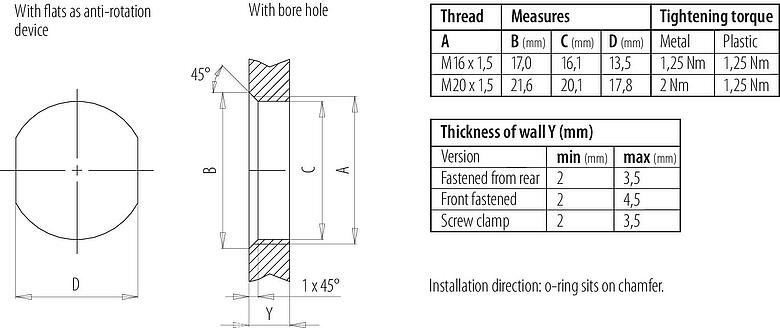

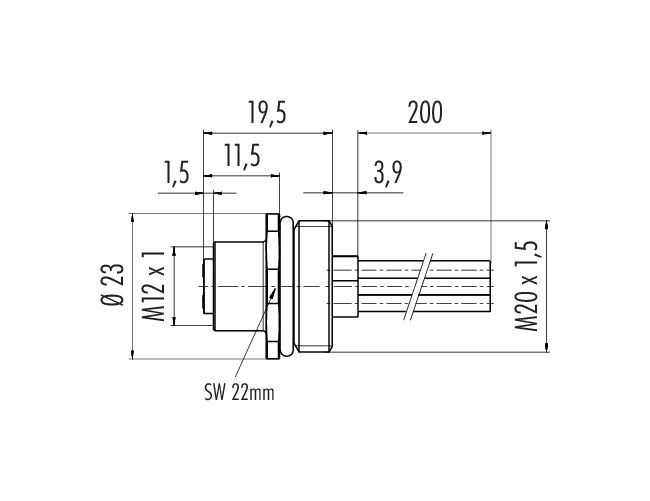

  4. M12-T Female panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, M20x1.5
Part no.: 09 0632 642 04

M12-T Female panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, M20x1.5

Compare product
Downloads
General features
Moreless
Part no. 09 0632 642 04
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw

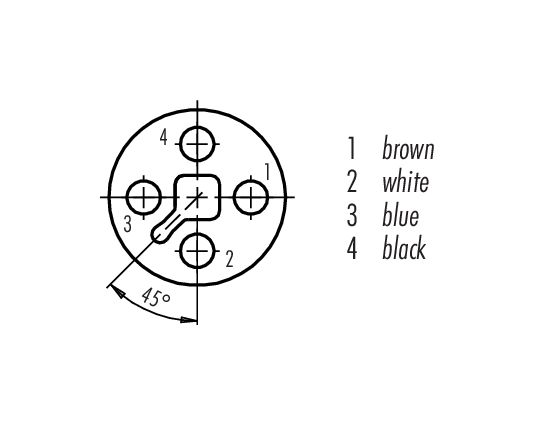

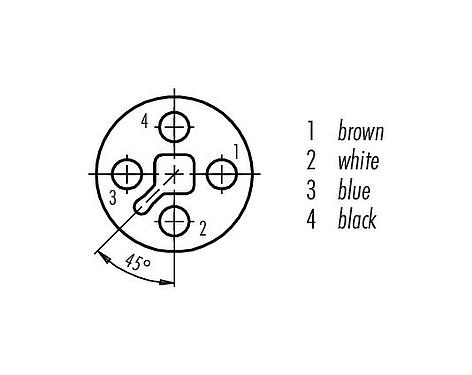

Termination single wires
Degree of protection IP68
Cross-sectional area 1.38 mm² / AWG 16
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 34.00
Customs tariff number 85369010
Rated voltage 63 V
Rated impulse voltage 1500 V

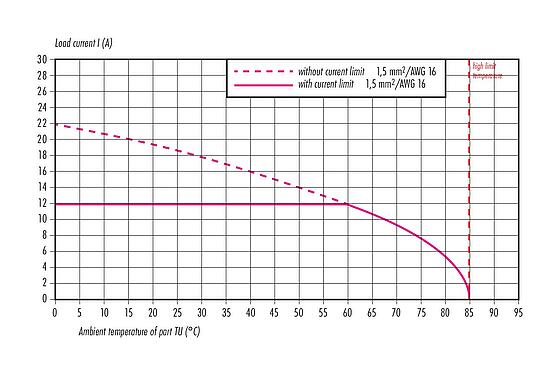

Rated current (40 °C) 12.0 A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance unshielded
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-01-09
ETIM 7.0 EC003569
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
