Subminiature connectors

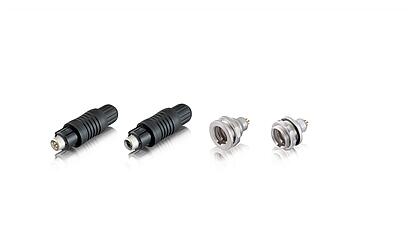

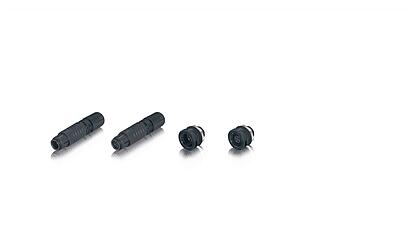

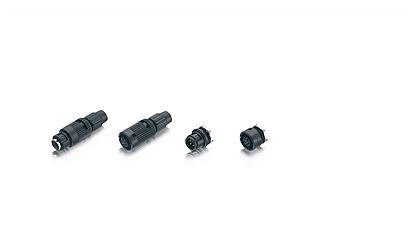

Our subminiature circular connectors are designed for the many applications where size and signal integrity are important. We offer models with snap, bayonet and push-pull locking, as well as M9 screw locking in two different versions, either IP40 or IP67. The connectors are available with two to eight contacts, in straight or angled versions and as flange connectors. The different models have a dip solder or solder connection and are available with moulded cables in different lengths. We use high-quality materials for the production of our circular connectors. The housing and contact bodies are made of PUR or PVC, the contacts are made of gold-plated bronze or gold-plated brass. There are seven different series available, which convince with the following advantages:

• Choice of locking mechanism
• Protection class IP40 or IP67
• 2 to 8 poles
• Straight and angled versions
• Up to 1,000 mating cycles
