  4. Bayonet Male angled connector, Contacts: 12, 4.0-6.0 mm, unshielded, solder, IP40
Part no.: 99 0649 70 12

Bayonet Male angled connector, Contacts: 12, 4.0-6.0 mm, unshielded, solder, IP40

Bayonet, series 678, Miniature Connectors
Compare product
Downloads

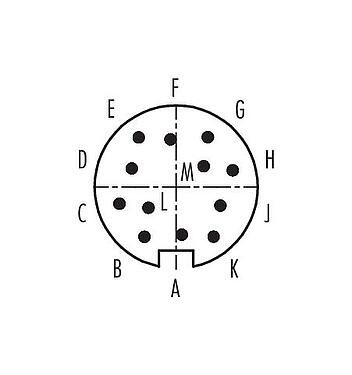

General features
Moreless
Part no. 99 0649 70 12
Connector design Male angled connector
Version Connector pin angled
Connector locking system Bayonet
Termination solder
Degree of protection IP40
Cross-sectional area max. 0.25 mm² / AWG 24
Cable outlet 4.0-6.0 mm
Twistability not rotatable
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 12.19
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2dbaf9d1-3b4f-4fe6-a367-89459d527f32
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
