Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • Connectors for medical applicationsConnectors in grey white in accordance with RAL 9002 with snap-in and bayonet locking systems
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • solderThe contact and the individual wires of a cable are connected using solder.

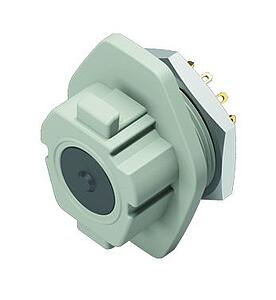

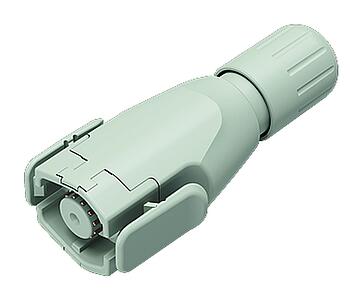

Snap-in ELC connectors for medical applications

The ELC Series 570 features a unique snap-in locking system that ensures more than 5000 mating operations, meeting the requirements of many medical device OEMs. The connector has a PA66 plastic housing in grey-white, similar to RAL 9002, 4/8/12 gold-plated contacts for a connection cross section of 0.25 mm² and is designed for a rated current of 2 A at 150 V. When unplugged, the flange socket is protected against the ingress of liquids, splashing water and accidental electrical contact. When plugged in, the ELC connector has protection class IP54.
