Subminiature bayonet connectors NCC

Series PDF (542 KB)

The 670 series includes cable plugs and flange sockets. The flange sockets have an IP54 degree of protection when unplugged and an IP67 degree of protection when plugged in. The connectors are available with 5 gold-plated contacts and are designed for a rated current of 2A at 50V. They have a plastic housing, a bayonet lock and a solder or dip solder connection. The connection cross-section is 0.25 mm² with a limit temperature of -25°C to +85°C.

binder NCC Steckverbinder Serie 770 - wasserdichte Steckverbinder mit vielfältigen Einsatzgebieten
Watch now on YouTube

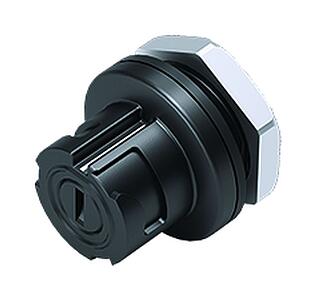

Subminiature Connectors-Bayonet NCC-Female panel mount connector_670_4_FD_tl_NCC
09 0762 090 05
Bayonet NCC Female panel mount connector, Contacts: 5, unshielded, THT, IP54 unplugged
Bayonet, series 670, Subminiature Connectors
Details

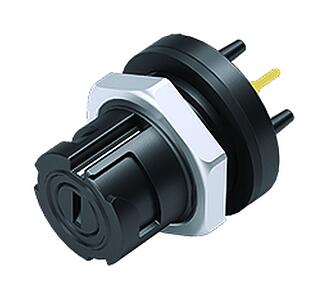

Subminiature Connectors-Bayonet NCC-Female panel mount connector_670_4_FD_front_tl_NCC
09 0762 190 05
Bayonet NCC Female panel mount connector, Contacts: 5, unshielded, THT, IP54 unplugged, front fastened
Bayonet, series 670, Subminiature Connectors
Details

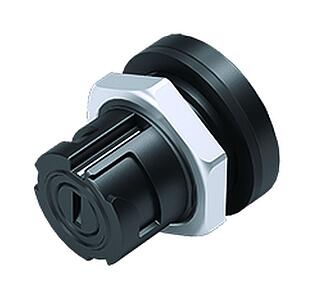

Subminiature Connectors-Bayonet NCC-Female panel mount connector_670_4_FD_front_l_NCC
09 0762 180 05
Bayonet NCC Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged, front fastened
Bayonet, series 670, Subminiature Connectors
Details
Subminiature Connectors-Bayonet NCC-Female panel mount connector_670_4_FD_l_NCC
09 0762 000 05
Bayonet NCC Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged
Bayonet, series 670, Subminiature Connectors
Details

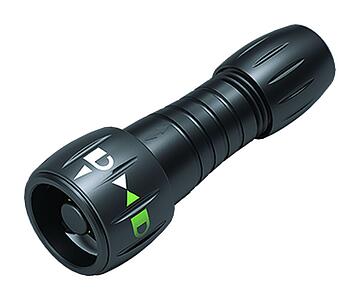

Subminiature Connectors-Bayonet NCC-Male cable connector_670_1_KS_NCC
99 0759 010 05
Bayonet NCC Male cable connector, Contacts: 5, 3.0-5.0 mm, solder, IP67
Bayonet, series 670, Subminiature Connectors
Details
