Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
The connector elements, pin and socket, must be brought into form-fitting alignment with one another (coding) before locking. This prevents mismating.
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Cable type
By selecting the cable type, a preselection for the respective application can be carried out.
Cable Jacket Type
The material of the cable jacket. PUR, TPE, TMPU or TPE-U cables each have different technical properties.
Cable color
The color of the cable jacket.
Cable length
Our items with molded or pre-assembled cables have different cable lengths. It describes the length of the cable from the end of the connector. If the desired cable length is not included, please contact our sales department.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.

M8-D connector

M8-D connectors are essential components for data transmission and known for their efficiency and reliability in demanding industrial environments with limited installation spaces. The M8 D-coded connector offers a robust solution for high-speed data communication, with options for both M8-D male connectors and M8-D female connectors to accommodate various connection needs. The M8 connector D-coding ensures secure and precise data transmission, making it particularly well-suited for Ethernet applications.

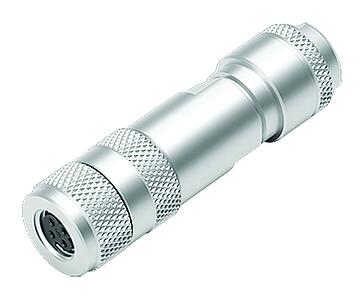

Male and female M8-D connector

M8-D connector 4 Pin are designed to meet the high demands of industrial data connectivity in applications with small or limited space with data rates of up to 100 Mbit/s.

M8-D ethernet connector

M8 connectors with D-coding are shielded and achieve protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors. The cable connectors are available for self-connection with a screw terminal connection or with overmoulded heads, the flange connectors via a dip solder connection.

Find your suitable M8-D connector from binder.
