Cikkszám: 99 0719 00 13

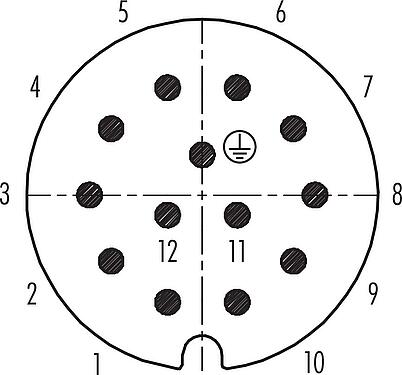

RD30 Panelre szerelhető csatlakozó, : 12+PE, árnyékolható, kézi forrasztású, IP65
RD30, Sorozat 694, Tápcsatlakozók
Általános jellemzők
többkevesebbAlkatrész sz. | 99 0719 00 13 |
Csatlakozó kialakítása | Panelre szerelhető csatlakozó |
Verzió | egyenes tűs csatlakozó |
Csatlakozó reteszelő rendszer | csavar |
Felmondás | kézi forrasztású |
Védettségi fok | IP65 |
Keresztmetszeti terület | max. 1,00 mm² / AWG 17 |
Hőmérséklet tartomány tól/ig | -40 °C / 100 °C |
Mechanikus működés | > 500 csatlakoztatási ciklus |
Súly (gr) | 31.99 |
Vámtarifaszám | 85369010 |
Származási ország | DE |
Elektromos paraméterek
többkevesebbNévleges feszültség | 250 V |
Névleges impulzusfeszültség | 4000 V |
Névleges áram | 6,0 A |
Szigetelési ellenállás | ≥ 1010 Ω |
Szennyezettségi fok | 3 |
Túlfeszültség kategória | III |
Anyagcsoport | III |
EMV megfelelőség | árnyékolható |
Anyag
többkevesebbA ház anyaga | PA |
Az érintkező test anyaga | PA (UL94 HB) |
Érintkezés anyaga | CuZn (sárgaréz) |
Érintkező bevonat | Ag (ezüst) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP szám | 067bcb6e-9f65-41f6-a039-926b11627494 |
Osztályozások
többkevesebbeCl@ss 11.1 | 27-44-01-02 |
ETIM 9.0 | EC002635 |
