Part no.: 09 6313 000 09

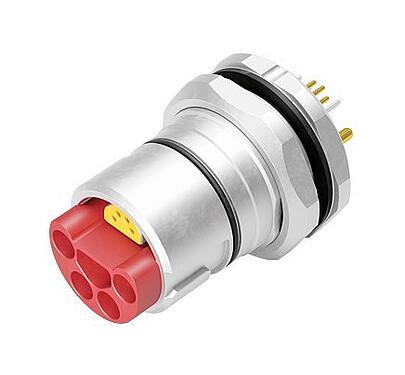

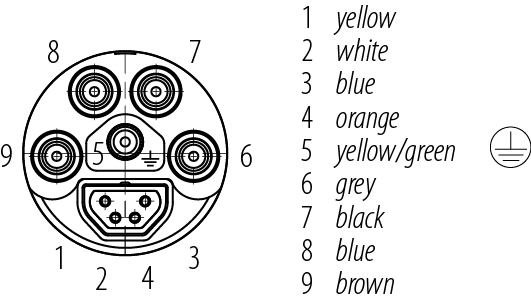

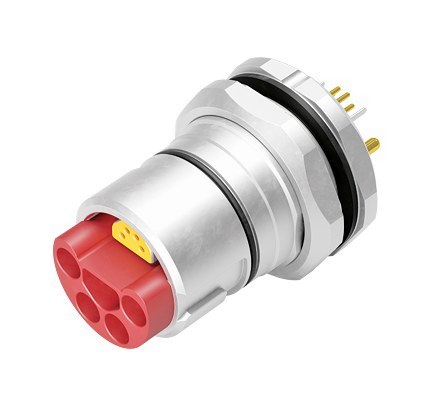

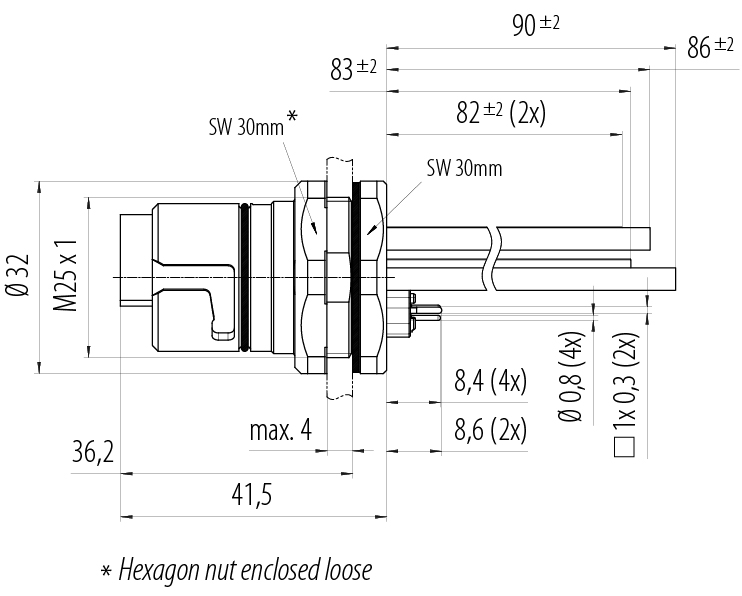

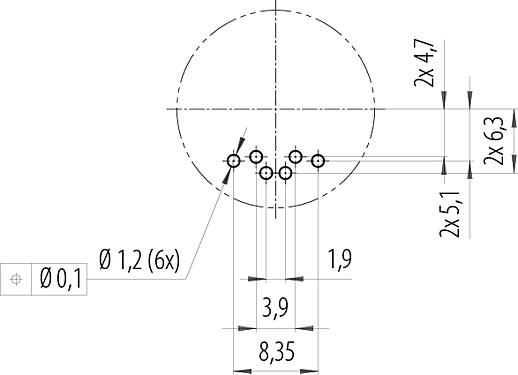

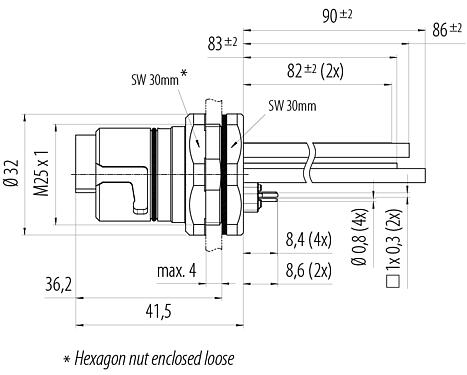

B23 Male panel mount connector, Contacts: 9 (4+PE + 4), THT, IP65/IP67, Rear mounting, ENP: Power pin / Data socket
B23, series 523, Power Connectors
General features
Moreless| Part no. | 09 6313 000 09 |
| Connector design | Male panel mount connector |
| Type standard | DIN EN IEC 61076-2-118 |
| Version | Connector pin straight |
| Connector locking system | Bayonet |
| Termination | THT |
| Degree of protection | IP65/IP67 |
| Temperature range from/to | -30 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 82.69 |
| Customs tariff number | 85366990 |
Electrical parameters
Moreless| Rated voltage | Power: 630 V, Data: 50 V |
| Rated impulse voltage | Power: 1500 V, Data: 800 V |
| Rated current | 26 A Power / 4 A Data |
| Pollution degree | 2 |
Material
Moreless| Housing material | Zinc die-cast nickel-plated |
| Contact body material | PA |
| Contact material | CuZn (brass lead-free) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
NK (Nicht klassifiziert) |
| SCIP number | SCIP-number not available |
