M25 Power connector IP40

Series PDF (399 KB)

691 series connectors are available in both cable and flange versions and have an M25 screw locking mechanism and a solder connection. They comply with protection class IP40 with an operating temperature range from -40 ⁰C to +85 ⁰C. These connectors are available with 3 to 12 contacts with a rated current of 5 A (125 V) and 10 A (250 V) depending on the number. The diameter of the cable connector/cable socket is 28 mm, the flange version has a diameter of 42.5 mm. Both are shieldable.

Power Connectors-M25-Male cable connector_691_1_00
09 0033 00 03
M25 Male cable connector, Contacts: 3, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Male cable connector_691_1_00
09 0037 00 05
M25 Male cable connector, Contacts: 5, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Male cable connector_691_1_00
09 0041 00 07
M25 Male cable connector, Contacts: 7, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Male cable connector_691_1_00
09 0445 00 12
M25 Male cable connector, Contacts: 12, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details

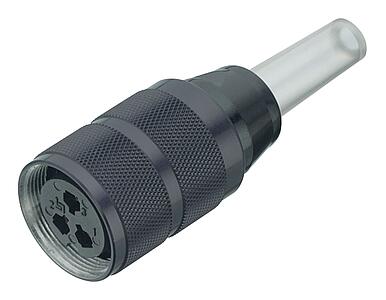

Power Connectors-M25-Female cable connector_691_2_00
09 0034 00 03
M25 Female cable connector, Contacts: 3, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Female cable connector_691_2_00
09 0038 00 05
M25 Female cable connector, Contacts: 5, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Female cable connector_691_2_00
09 0042 00 07
M25 Female cable connector, Contacts: 7, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Female cable connector_691_2_00
09 0446 00 12
M25 Female cable connector, Contacts: 12, 5.0-8.0 mm, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Male panel mount connector_691_3_00
09 0035 00 03
M25 Male panel mount connector, Contacts: 3, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Male panel mount connector_691_3_00
09 0039 00 05
M25 Male panel mount connector, Contacts: 5, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Male panel mount connector_691_3_00
09 0043 00 07
M25 Male panel mount connector, Contacts: 7, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
Power Connectors-M25-Male panel mount connector_691_3_00
09 0447 00 12
M25 Male panel mount connector, Contacts: 12, shieldable, solder, IP40
M25, series 691, Power Connectors
Details
