Part no.: 77 3505 0000 20703-0500

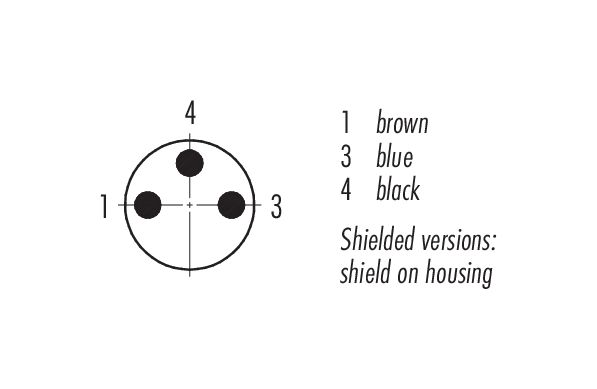

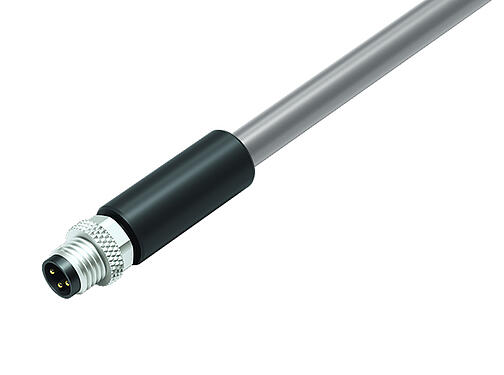

M8 Male cable connector, Contacts: 3, shielded, moulded on the cable, IP67, PVC, grey, 3 x 0.34 mm², 5 m
M8, series 718, Automation Technology - Sensors and Actuators
3D View(Click to activate)
General features
Moreless| Part no. | 77 3505 0000 20703-0500 |
| Connector design | Male cable connector |
| Type standard | DIN EN 61076-2-104 |
| Cable length | 5 m (Standard 2 m and 5 m. Other lengths are available on request.) |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | 0.34 mm² / AWG 22 |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 87.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 60 V |
| Rated impulse voltage | 1500 V |
| Rated current | 4.0 A |
| Insulation resistance | > 10⁸ Ω |
| Pollution degree | 3 |
| Insulating material group | II |
| EMC compliance | shielded |
| Shield connection | Screen on shield sleeve |
| Voltage | 1000 V DC |
Material
Moreless| Contact body material | PUR |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | CuZn (brass) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 024d40e4-ccc4-4022-af97-125d3a527ffd |
Classifications
Moreless| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 5.0 mm |
| Cross section | 3 x 0.34 mm² |
| Sheath material | PVC |
| Single-lead insulation | PVC |
| Single-lead structure | 42 x 0.10 mm |
| Cable color | grey |
| Electrical properties | |
| Operating voltage | ≤ 300 V |
| Conductor resistance | 57 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Bending cycles | > 2 million |
| Permitted acceleration | 5 m/s² |
| Travel distance, horizontal | 5 m |
| Travel distance, vertical | 5 m |
| Travel speed | 200 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -5 °C / 105 °C |
| Temperature range cable fixed from/to | -40 °C / 105 °C |
| Other features | |
| Halogen free | no |
Security notices
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
