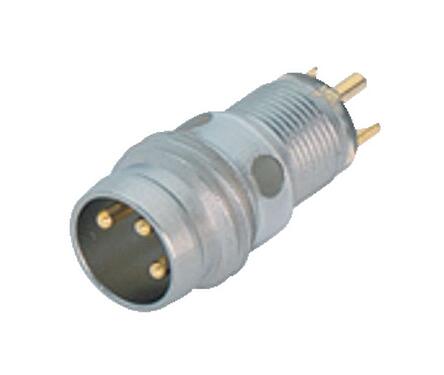

  4. M8 Male receptacle, Contacts: 3, unshielded, solder, IP65
Part no.: 86 6919 0002 30703

M8 Male receptacle, Contacts: 3, unshielded, solder, IP65

M8, series 718, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
General features
Part no. 86 6919 0002 30703
Alternative part no.: 09 3413 40 03
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
Connector design Male receptacle
Type standard DIN EN 61076-2-104
Version Connector pin straight
Connector locking system snap-in, screw
Termination solder
Degree of protection IP65
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 70 °C
Mechanical operation > 100 Mating cycles
Weight (g) 1.40
Customs tariff number 85369010
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material CuZn (Brass nickel plated)
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 1c9d57b1-f258-4022-bc0e-ea10ed8a1547
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
