  4. M8 Female cable connector, Contacts: 4, 4.0-5.5 mm, shieldable, screw clamp, IP67, UL
Part no.: 99 3362 100 04

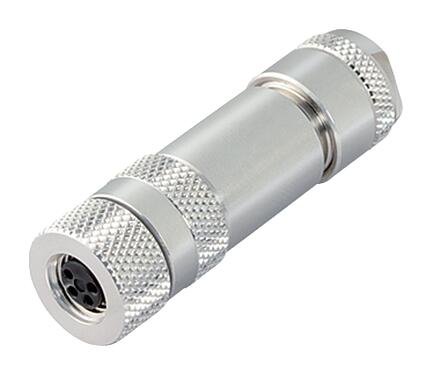

M8 Female cable connector, Contacts: 4, 4.0-5.5 mm, shieldable, screw clamp, IP67, UL

M8, series 768, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
General features
Part no. 99 3362 100 04
Connector design Female cable connector
Type standard DIN EN 61076-2-104
Version Connector socket straight
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area 0.14-0.50 mm² / AWG 26-20
Cable outlet 4.0-5.5 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 27.91
Customs tariff number 85369010
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance shieldable
Shield connection Iris type spring
Housing material CuZn (Brass nickel plated)
Contact body material PA66 (UL94 HB)
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 9513eed4-5796-4b52-bc50-458dff6d9cbb
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
