LED
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
  • M12 The connectors can be screwed together to secure the connection. M stands for metric thread and the number stands for the external diameter.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP67 Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
  • IP68 Fully protects against touch and against the intrusion of dust. Protects against water intrusion in sustained submersion (depth: 2 m; duration: 24 hours), requirements specification by agreement between producer and user.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mounting Connectors with cable already moulded or for self-assembly.
  • Housing assembly Connectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Product segment
binder areas of application or type of connector.

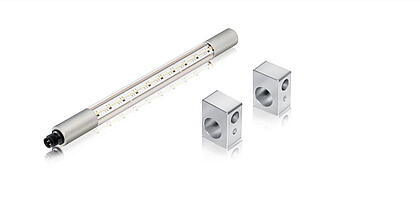

  • LED LED machine lamps for industrial use with IP69K. Versions in various lengths with aluminium or stainless steel housings.
