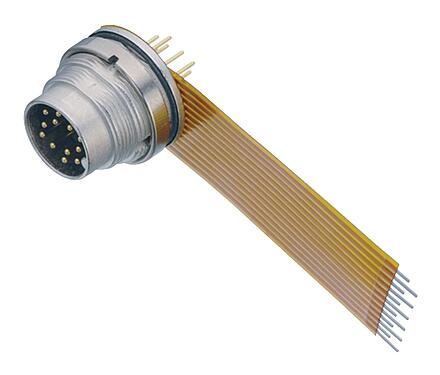

  4. M16 Male panel mount connector, Contacts: 12 (12-a), unshielded, THT, IP67, front fastened
Part no.: 09 0131 65 12

M16 Male panel mount connector, Contacts: 12 (12-a), unshielded, THT, IP67, front fastened

M16 IP67, series 723, Miniature Connectors
Compare product
General features
Part no. 09 0131 65 12
Connector design Male panel mount connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 15.84
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2a64daa3-6f8f-447e-9e3d-39fb159d8aaa
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
