  4. M16 Female panel mount connector, Contacts: 12 (12-a), unshielded, solder, IP67, UL
Part no.: 09 0132 00 12

M16 Female panel mount connector, Contacts: 12 (12-a), unshielded, solder, IP67, UL

M16 IP67, series 723, Miniature Connectors
Available numbers of contacts
Compare product
General features
Part no. 09 0132 00 12

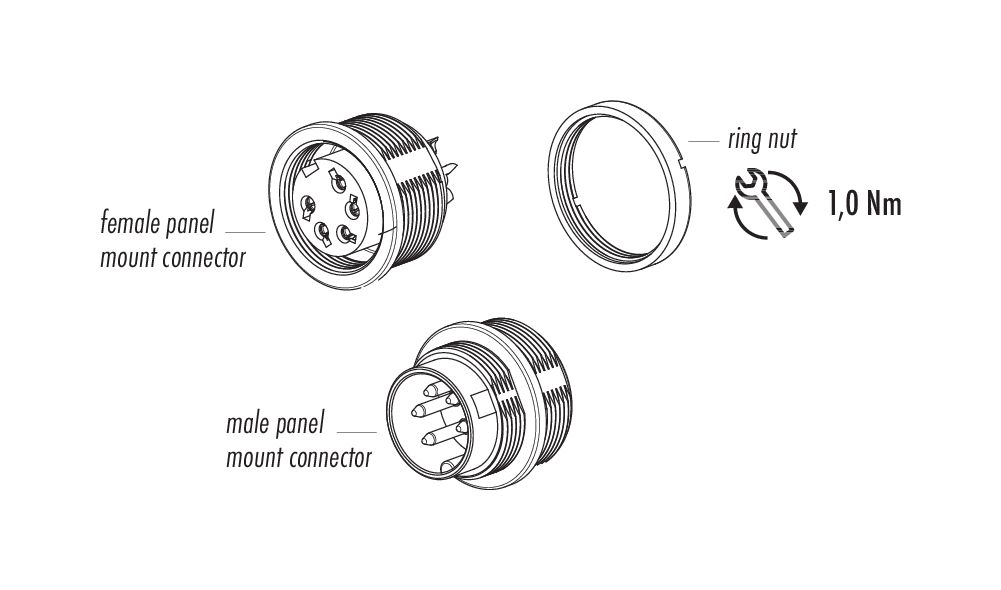

Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 9.51
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number ce039a31-eea4-4d7d-9225-f8da178cba36
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
