M16 Female angled connector, Contacts: 5 (05-a), shielded, moulded on the cable, IP67, PUR, black, 5 x 0.25 mm², 2 m

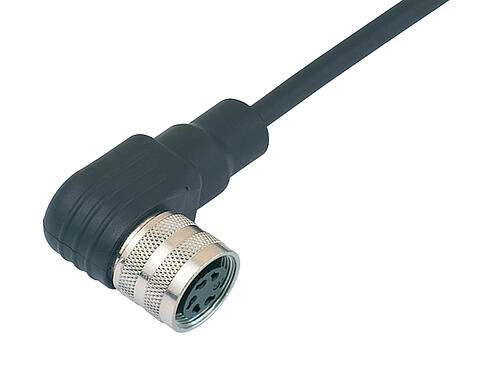

Illustration 79 6314 200 05 - M16 Female angled connector, Contacts: 5 (05-a), shielded, moulded on the cable, IP67, PUR, black, 5 x 0.25 mm², 2 m — Illustration

3D View 79 6314 200 05 - M16 Female angled connector, Contacts: 5 (05-a), shielded, moulded on the cable, IP67, PUR, black, 5 x 0.25 mm², 2 m — 3D View

Scale drawing 79 6314 200 05 - M16 Female angled connector, Contacts: 5 (05-a), shielded, moulded on the cable, IP67, PUR, black, 5 x 0.25 mm², 2 m — Scale drawing

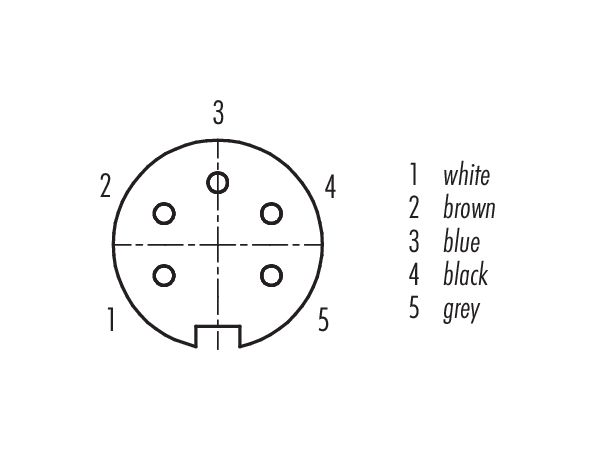

Contact arrangement (Plug-in side) 79 6314 200 05 - M16 Female angled connector, Contacts: 5 (05-a), shielded, moulded on the cable, IP67, PUR, black, 5 x 0.25 mm², 2 m — Contact arrangement (Plug-in side)

Part no.	79 6314 200 05
Connector design	Female angled connector
Type standard	DIN EN 61076-2-106
Cable length	2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version	Connector socket angled
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP67
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 70 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	131.50
Customs tariff number	85444290
Country of Origin	HU

Rated voltage	250 V
Rated impulse voltage	1500 V
Rated current	3,0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	shielded
Shield connection	Shield on the threaded ring

Housing material	PUR
Contact body material	PBT (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	7f486db7-45c6-4720-b1ae-277471f7baef

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)

Structure of the cable
Cable diameter	5.3 mm
Cross section	5 x 0.25 mm²
Sheath material	PUR
Single-lead insulation	PE
Single-lead structure	14 x 0.15 mm
Cable color	black
Electrical properties
Conductor resistance	75.5 Ω/Km (20°C)
Thermal properties
Temperature range cable in move from/to	-5 °C / 70 °C
Temperature range cable fixed from/to	-20 °C / 70 °C
Other features
Halogen free	yes
