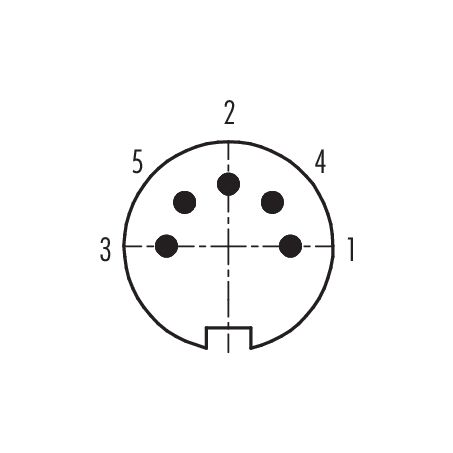

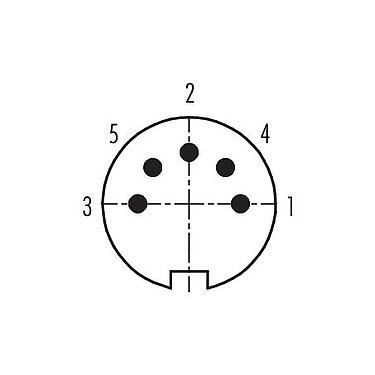

  4. M16 IP67 Male cable connector, Contacts: 5 (05-b), 6.0-8.0 mm, shieldable, solder, IP67, UL
Part no.: 99 5617 00 05

M16 IP67 Male cable connector, Contacts: 5 (05-b), 6.0-8.0 mm, shieldable, solder, IP67, UL

Compare product
Downloads
General features
Moreless
Part no. 99 5617 00 05
Connector design Male cable connector
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 6.0-8.0 mm
Temperature range from/to -30 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 45.20
Customs tariff number 85369010
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current (40 °C) 6.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection cable clamp
Housing material CuZn (Brass nickel plated)
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 339ab5f0-9324-4386-87de-863236a2f634
eCl@ss 11.1 27-44-01-02
ETIM 7.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
