  2. Subminiature connectors
  3. Snap-in IP40

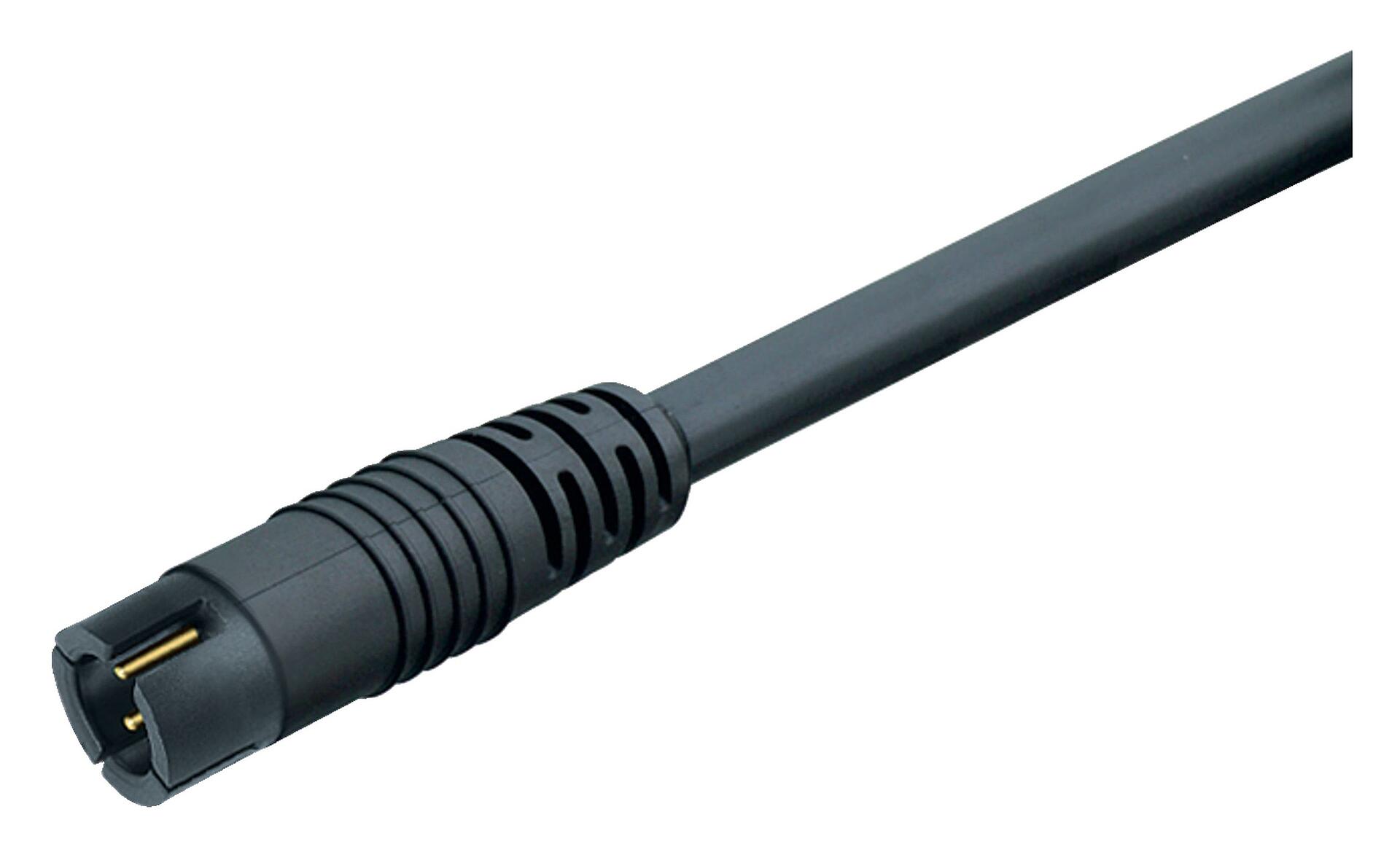

  4. Snap-In Male cable connector, Contacts: 3, unshielded, moulded on the cable, IP40, PVC, black, 3 x 0.25 mm², 5 m
Part no.: 79 9001 15 03

Snap-In Male cable connector, Contacts: 3, unshielded, moulded on the cable, IP40, PVC, black, 3 x 0.25 mm², 5 m

Snap-In IP40, series 709, Subminiature Connectors
There is a newer version of this article
Direct comparison old/new version
Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads
General features
Moreless
Part no. 79 9001 15 03
Connector design Male cable connector
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector pin straight
Connector locking system snap-in
Termination moulded on the cable
Degree of protection IP40
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 100 Mating cycles
Weight (g) 150.50
Customs tariff number 85444290
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material PUR
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number d6c41f04-6558-410d-bbdf-5880e6254a2d
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable diameter 4.5 mm
Cross section 3 x 0.25 mm²
Sheath material PVC
Single-lead insulation PVC
Single-lead structure 32 x 0.10 mm
Cable color black
Electrical properties
Conductor resistance 79.5 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable 5 x Ø
Bending radius, moving cable 10 x Ø
Thermal properties
Temperature range cable in move from/to -5 °C / 70 °C
Other features
Halogen free no
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
