Part no.: 09 5240 00 04
M12/M12 Lead-through for control cabinet, Contacts: 4, shielded, pluggable, IP67, M12x1.0
series 765, Automation Technology - Sensors and Actuators
3D View(Click to activate)
There is a newer version of this article
Direct comparison old/new version
09 5240 10 04
M12 Lead-through for control cabinet, Contacts: 4, shielded, pluggable, IP67, UL 2238, M12x1.0
Automation Technology - Sensors and Actuators

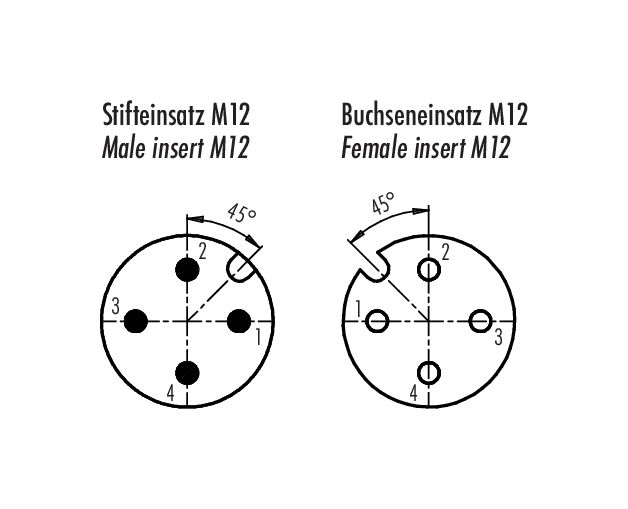

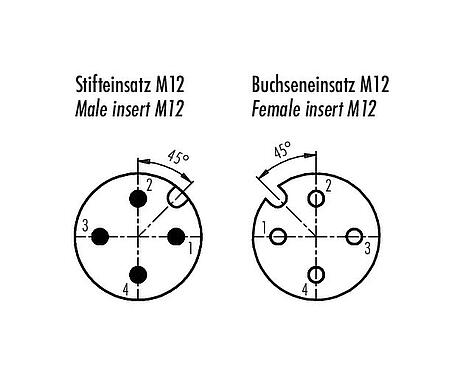

General features
Moreless| Part no. | 09 5240 00 04 |
| Connector design | Lead-through for control cabinet |
| Version | Lead-through for control cabinets |
| Connector locking system | screw |
| Termination | pluggable |
| Degree of protection | IP67 |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 62.26 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 250 V |
| Rated impulse voltage | 2500 V |
| Rated current | 4.0 A |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | shielded |
| Shield connection | Shield on the housing |
Material
Moreless| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 103208fe-009f-4cbf-863f-3642e4093921 |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60529:1991 | 2014/35/EU;EN 60204-1:2018) |
