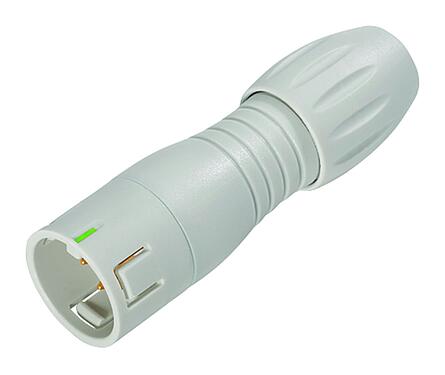

  4. Snap-In Male cable connector, Contacts: 5, 2.5-4.0 mm, unshielded, solder, IP67
Part no.: 99 9113 403 05

Snap-In Male cable connector, Contacts: 5, 2.5-4.0 mm, unshielded, solder, IP67

Snap-In IP67 (miniature), series 720, Connectors for medical applications
Available numbers of contacts
Compare product
General features
Part no. 99 9113 403 05
Connector design Male cable connector
Version Connector pin straight
Connector locking system snap-in
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 2.5-4.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 15.0
Customs tariff number 85369010
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 5.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PA
Contact body material PA (UL94 V-0) grey
Contact material CuZn (brass)
Contact plating Au (gold)
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
Data sheet
Data sheet 99 9113 403 05
99 9113 403 05
99 9113 403 05
China RoHS
99 9113 403 05
