  3. Model A
  4. Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, 5 m
Part no.: 31 5234 500 000

Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, 5 m

Size A, series 210, Automation Technology - Solenoid Valve Connectors

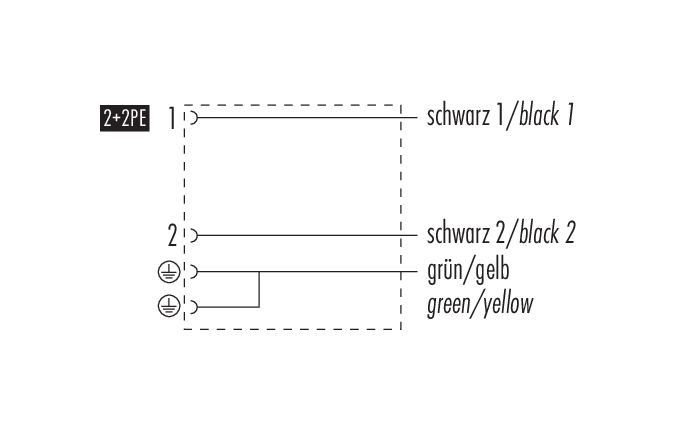

Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
General features
Part no. 31 5234 500 000
Alternative part no.: 31 1313 500 000
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
Connector design Female solenoid valve connector
Type standard DIN EN 175301-803
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Valve connector
Connector locking system Central bolt
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -25 °C / 80 °C
Mechanical operation > 50 Mating cycles
Weight (g) 305.00
Customs tariff number 85444290
Country of Origin CZ
Rated voltage 230 V
Rated impulse voltage 4000 V
Rated current 10.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded
Housing material PBT
Contact body material PA
Contact material CuSn (bronze)
Contact plating Sn (tin)
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Structure of the cable
Cable diameter 6.0 mm
Sheath material PUR
Single-lead structure 3 x 0.75 mm
Cable color black
Other features
Halogen free yes
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
