Part no.: 31 5237 500 520
Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z20, with LED PNP, 5 m
Size A, series 210, Automation Technology - Solenoid Valve Connectors
3D View(Click to activate)
General features
Moreless| Part no. |
31 5237 500 520
Alternative part no.: 31 1313 500 520
|
| Notice |
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More |
| Connector design | Female solenoid valve connector |
| Type standard | DIN EN 175301-803 |
| Cable length | 5 m (Standard 2 m and 5 m. Other lengths are available on request.) |
| Version | Valve connector |
| Connector locking system | Central bolt |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | 0.75 mm² / AWG 18 |
| Temperature range from/to | -25 °C / 80 °C |
| Mechanical operation | > 50 Mating cycles |
| Additional information |
Circuit Z20 with LED PNP |
| Weight (g) | 300.00 |
| Customs tariff number | 85444290 |
| Country of Origin | CZ |
Electrical parameters
Moreless| Rated voltage | 24 V |
| Rated impulse voltage | 4000 V |
| Rated current | 10.0 A |
| Insulation resistance | ≥ 10¹⁰ Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |

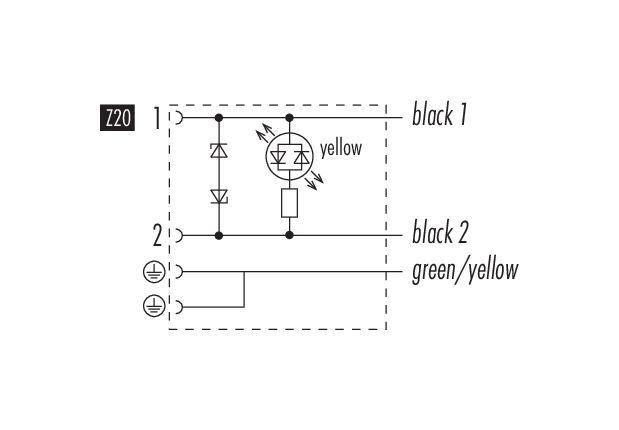

| Wiring | Z20 |
Material
Moreless| Housing material | PBT |
| Contact body material | PA |
| Contact material | CuSn (bronze) |
| Contact plating | Sn (tin) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 5cba336c-1f3f-472c-b9cb-645c5a32685d |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Declarations of conformity
Moreless| RoHS Directive | 2011/65/EU (EN 50581:2012) |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 6.0 mm |
| Sheath material | PUR |
| Single-lead structure | 3 x 0.75 mm |
| Cable color | black |
| Other features | |
| Halogen free | yes |
Security notices
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
