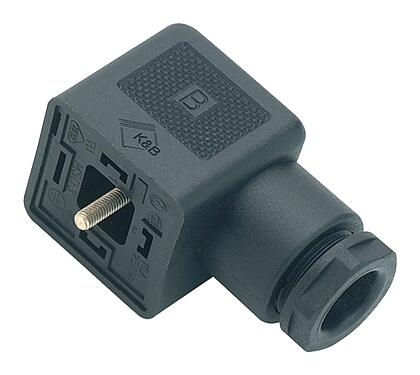

  4. Female power connector, Contacts: 3+PE, 3.0-10.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE
Part no.: 43 1702 004 04

Female power connector, Contacts: 3+PE, 3.0-10.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE

Size A, series 210, Automation Technology - Solenoid Valve Connectors
Available numbers of contacts
Compare product
General features
Part no. 43 1702 004 04
Connector design Female power connector
Type standard DIN EN 175301-803
Version Connector socket straight
Connector locking system Central bolt
Termination screw clamp
Degree of protection IP40 without seal
IP65 with seal, see accessories
Cross-sectional area 0.34-1.50 mm²
Cable outlet 3.0-10.0 mm
Temperature range from/to -30 °C / 120 °C
Mechanical operation > 50 Mating cycles
Weight (g) 23.92
Customs tariff number 85369010
Rated voltage 250 V
Rated impulse voltage 4000 V
Rated current 10.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PA (UL94 HB)
Contact material CuSn (bronze)
Contact plating Ni (nickel)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number cd43e0f5-d2bd-4e9d-907d-c380d259dc65
Approvals UL, ESTI+, VDE
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  5. The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
