  2. Miniature connectors
  3. M16 IP67

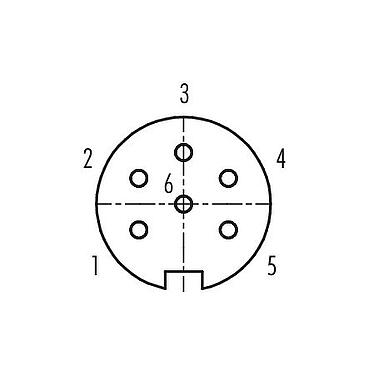

  4. M16 IP67 Female cable connector, Contacts: 6 (06-a), 4.0-6.0 mm, shieldable, solder, IP67, UL
Part no.: 99 5122 00 06

M16 IP67 Female cable connector, Contacts: 6 (06-a), 4.0-6.0 mm, shieldable, solder, IP67, UL

Compare product
Downloads
General features
Moreless
Part no. 99 5122 00 06
Connector design Female cable connector
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 4.0-6.0 mm
Temperature range from/to -30 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 52.93
Customs tariff number 85369010
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current (40 °C) 5.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection cable clamp
Housing material CuZn (Brass nickel plated)
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 4541b270-c3eb-4bd1-b92d-2314db020462
eCl@ss 11.1 27-44-01-02
ETIM 7.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  5. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  6. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
