  4. Adapter, Contacts: 3+PE, unshielded, pluggable, IP65
Part no.: 99 5702 00 04

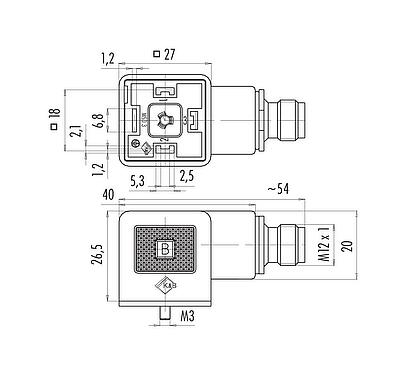

Adapter, Contacts: 3+PE, unshielded, pluggable, IP65

Size A, series 210, Automation Technology - Solenoid Valve Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 99 5702 00 04
Connector design Adapter
Type standard DIN EN 175301-803
Version Adapter
Connector locking system Central bolt
Termination pluggable
Degree of protection IP65
Cross-sectional area max. 0.34 mm² / AWG 22
Temperature range from/to -30 °C / 85 °C
Mechanical operation > 50 Mating cycles
Weight (g) 27.33
Customs tariff number 85444290
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 4.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PA
Contact body material PA (UL94 HB)
Contact material CuSn (bronze) / CuZn (brass)
Contact plating Ni (nickel)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number eba6031a-dd02-487b-a519-22517b97fe6c
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  5. The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
