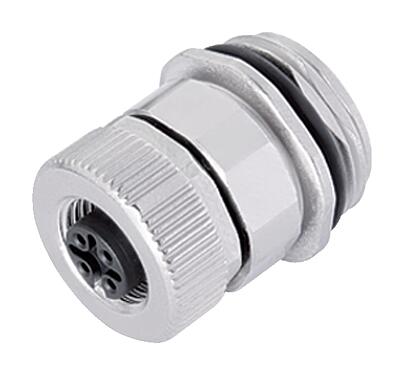

  4. M12 Female panel mount connector, Contacts: 4, unshielded, screw clamp, IP67, UL, VDE, M20x1.5
Part no.: 86 0432 0003 00004

M12 Female panel mount connector, Contacts: 4, unshielded, screw clamp, IP67, UL, VDE, M20x1.5

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
General features
Part no. 86 0432 0003 00004
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
Connector design Female panel mount connector
Type standard DIN EN 61076-2-101
Version Connector socket straight
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 50 Mating cycles
Weight (g) 28.00
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 4 A (3 A UL)
Insulation resistance > 10⁸ Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PA black
Contact material CuSn (bronze) / CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number fe65d2db-f62d-487e-b1c2-e2a2ffb68c22
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
