  4. M5 Male panel mount connector, Contacts: 3, unshielded, single wires, IP67
Part no.: 09 3105 00 03

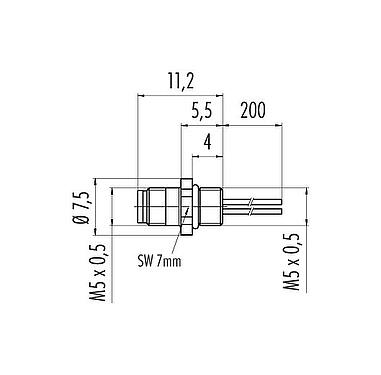

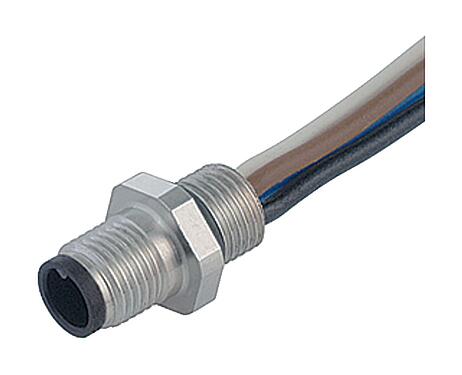

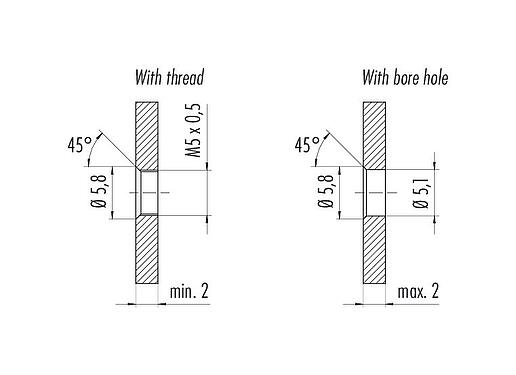

M5 Male panel mount connector, Contacts: 3, unshielded, single wires, IP67

M5, series 707, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 3105 00 03
Connector design Male panel mount connector
Type standard DIN EN 61076-2-105
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP67
Cross-sectional area 0.14 mm² / AWG 26
Temperature range from/to -25 °C / 80 °C
Mechanical operation > 100 Mating cycles
Weight (g) 2.46
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 1.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group I
EMC compliance unshielded
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 3257bba6-022c-4895-b3f7-d31ba5e66624
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
