  4. M8 Female angled panel mount connector, Contacts: 3, unshielded, THR, IP67, UL
Part no.: 99 3412 282 03

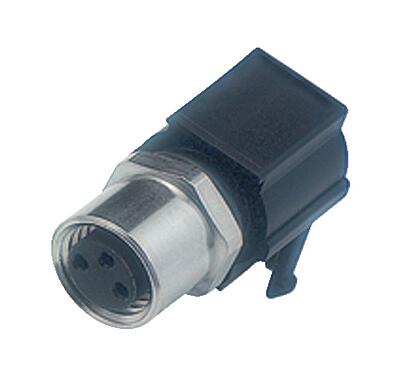

M8 Female angled panel mount connector, Contacts: 3, unshielded, THR, IP67, UL

M8, series 718, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 99 3412 282 03
Connector design Female angled panel mount connector
Type standard DIN EN 61076-2-104
Version Connector socket straight
Connector locking system screw
Termination THR
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 3.38
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 32a9f7dc-0f8d-4980-b790-de9709ade407
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
