Part no.: 09 0316 90 05

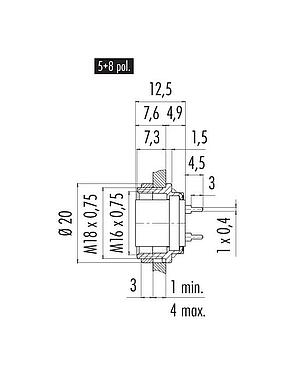

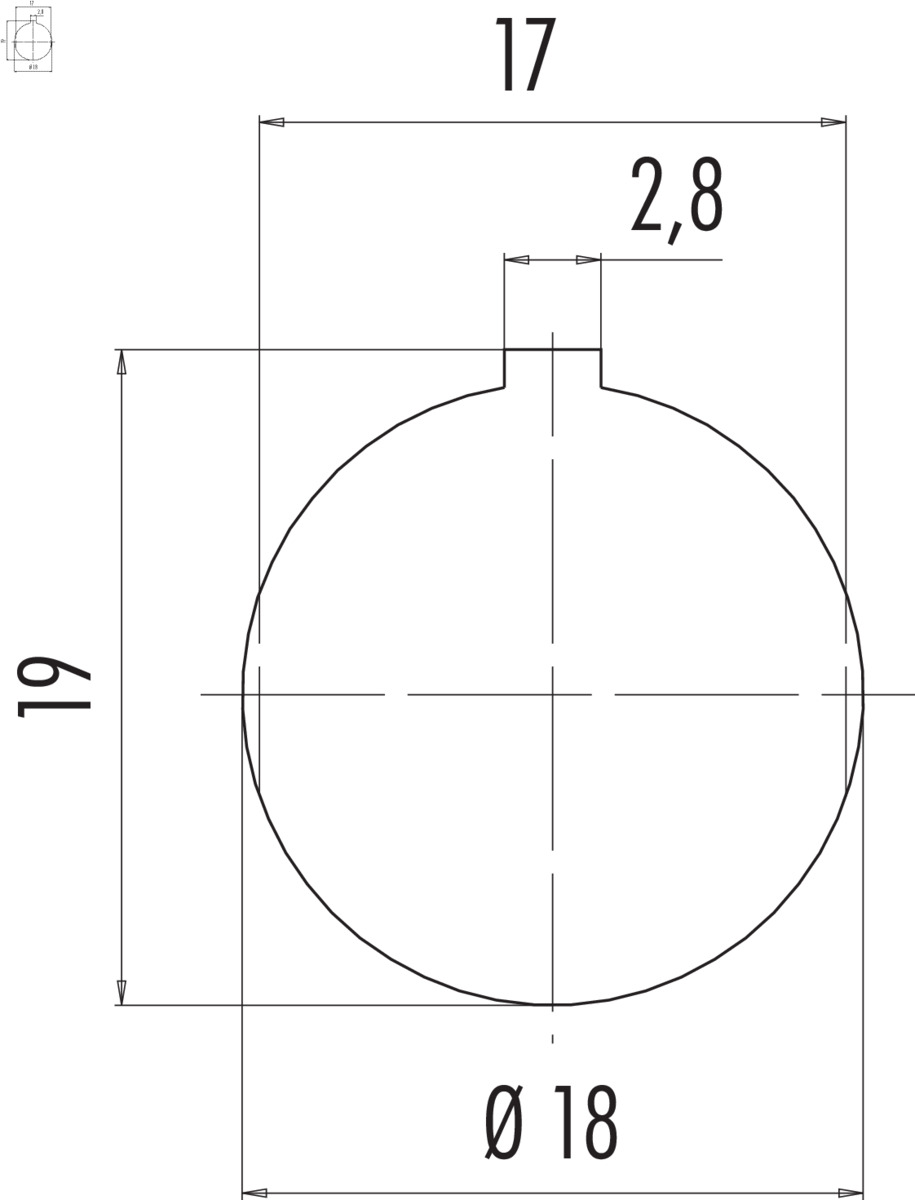

M16 Female panel mount connector, Contacts: 5 (05-a), unshielded, THT, IP40, front fastened
M16 IP40, series 680, Miniature Connectors
|Part no.||09 0316 90 05|
|Connector design||Female panel mount connector|
|Type standard||DIN EN 61076-2-106|
|Version||Connector socket straight|
|Connector locking system||screw|
|Degree of protection||IP40|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 500 Mating cycles|
|Customs tariff number||85369010|
|Country of Origin||DE|
|Rated voltage||250 V|
|Rated impulse voltage||1500 V|
|Rated current||6.0 A|
|Insulation resistance||≥ 10¹⁰ Ω|
|Insulating material group||III|
|Housing material||Zinc die-cast nickel-plated|
|Contact body material||PBT (UL94 V-0)|
|Contact material||CuSn (bronze)|
|Contact plating||Ag (silver)|
CAS 7439-92-1 (Lead)|
