Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Coding
The connector elements, pin and socket, must be brought into form-fitting alignment with one another (coding) before locking. This prevents mismating.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Approval
Our articles have various approvals which can be preselected here. can be preselected here.
Cable type
By selecting the cable type, a preselection for the respective application can be carried out.
Cable Jacket Type
The material of the cable jacket. PUR, TPE, TMPU or TPE-U cables each have different technical properties.
Cable color
The color of the cable jacket.
Cable length
Our items with molded or pre-assembled cables have different cable lengths. It describes the length of the cable from the end of the connector. If the desired cable length is not included, please contact our sales department.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.
  1. Products
  2. Automation technology - Sensors and actuators

Automation technology - sensors and actuators

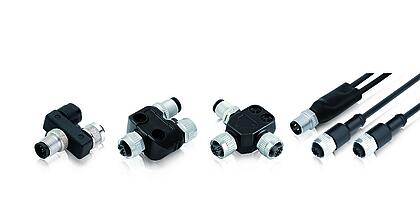

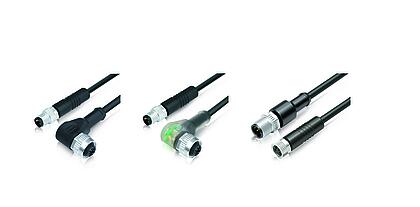

These connector systems offer the perfect solution for sensors and actuators in many branches of industry. We offer connectors from IP40 to IP69K, many with UL, VDE and Ecolab approval, as well as FDA compliant models. Users can order circular connectors with 2 to 12 contacts and various termination options, including solder, crimp, dip solder, cable and stranded wire termination. Connectors with M5, M8 and M12 screw locking are available in straight and angled and flanged versions. In addition to duo connectors and dual distributors, a wide range of connecting cables is also available.

Features:

• 2 to 12 poles
• IP40 to IP69K
• Screw lock
• Easy installation
• UL, VDE and Ecolab approval
• Connecting lines
• FDA compliant designs
