M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened

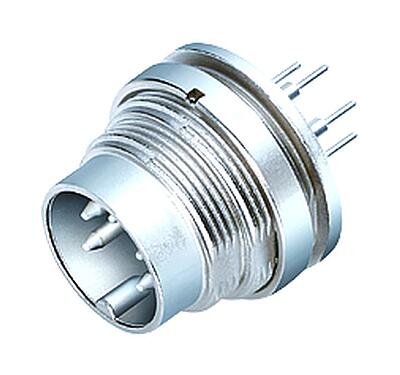

Illustration 09 0327 90 07 - M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Illustration

3D View 09 0327 90 07 - M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — 3D View

Conductor layout 09 0327 90 07 - M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Conductor layout

Component part drawing 09 0327 90 07 - M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Component part drawing

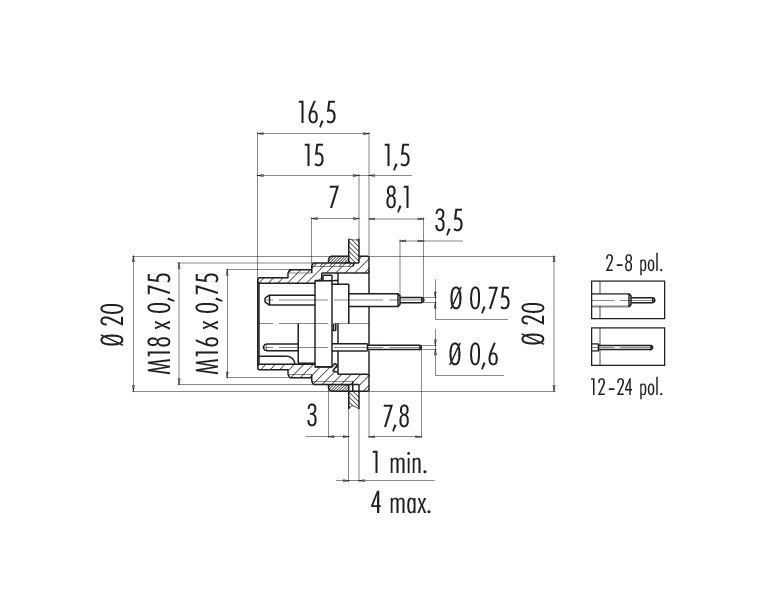

Scale drawing 09 0327 90 07 - M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Scale drawing

Assembly instructions / Panel cut-out 09 0327 90 07 - M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0327 90 07 - M16 Male panel mount connector, Contacts: 7 (07-a), unshielded, THT, IP40, front fastened — Contact arrangement (Plug-in side)

Part no.	09 0327 90 07
Connector design	Male panel mount connector
Type standard	DIN EN 61076-2-106
Version	Connector pin straight
Connector locking system	screw
Termination	THT
Degree of protection	IP40
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	12.51
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	800 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	unshielded

Housing material	Zinc die-cast nickel-plated
Contact body material	PBT (UL94 V-0)
Contact material	CuZn (brass)
Contact plating	Ag (silver)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	367927d0-3afb-4865-ac88-e8f4f691723e

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
