  4. Push Pull Female cable connector, Contacts: 12, 4.0-8.0 mm, shieldable, solder, IP67
Part no.: 99 4834 00 12

Push Pull Female cable connector, Contacts: 12, 4.0-8.0 mm, shieldable, solder, IP67

Push-Pull, series 440, Miniature Connectors

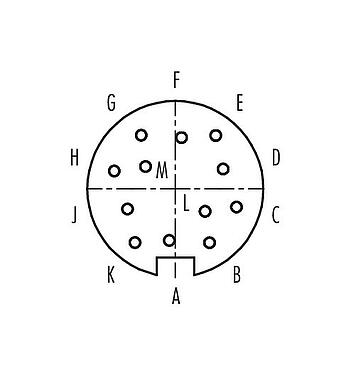

Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 99 4834 00 12
Connector design Female cable connector
Version Connector socket straight
Connector locking system Push-Pull
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.25 mm² / AWG 24
Cable outlet 4.0-8.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 23.83
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection Shield clamping
Housing material PA GF 25
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number f3a25b87-4a2e-4b33-b4cf-015bd13dcf88
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Security notices
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
